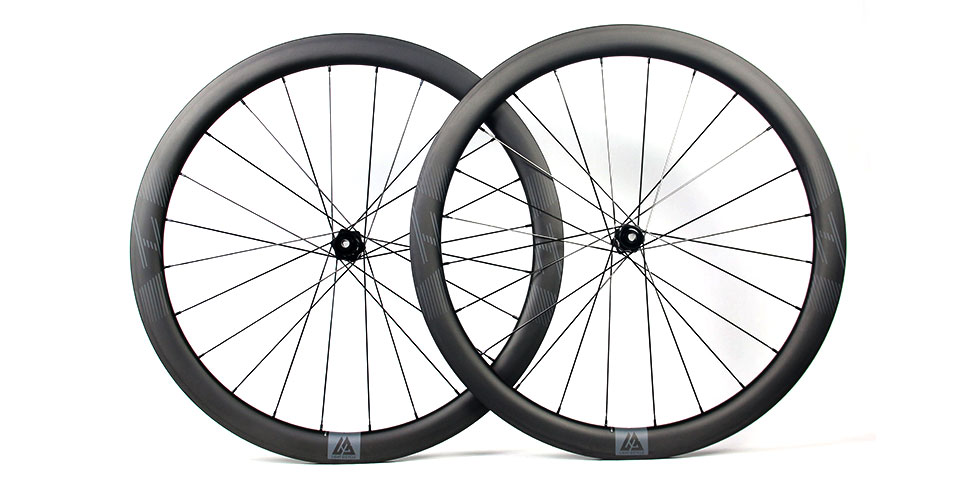

crosswind-handling-medium-deep-carbon-road-wheels

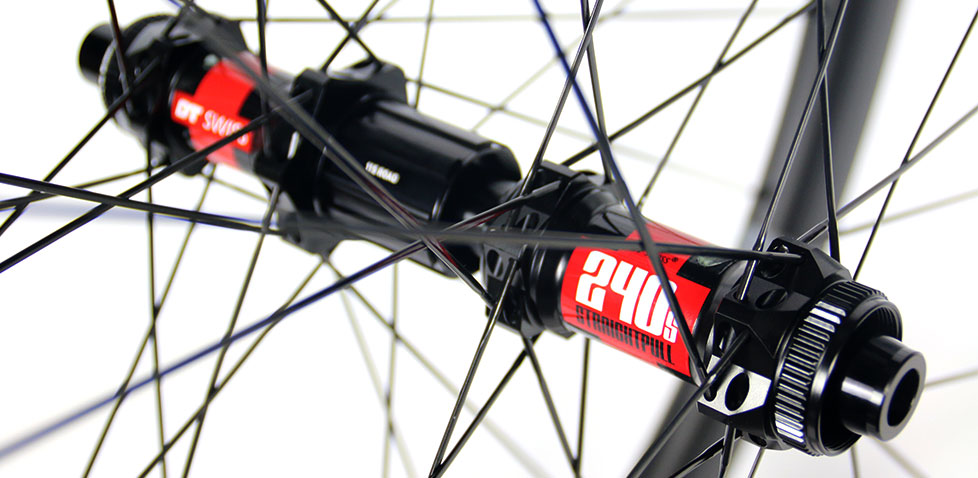

top-chinese-made-carbon-wheels-with-DT-Swiss

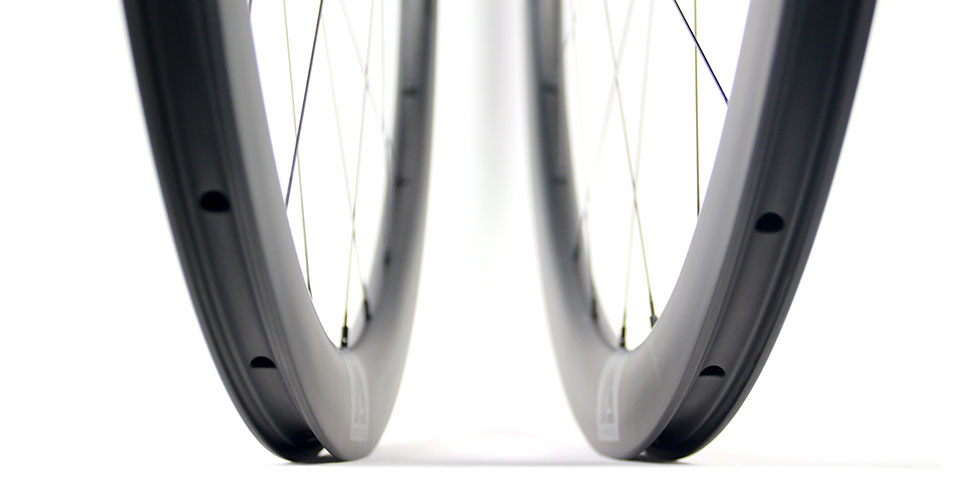

Trek-bike-equivalent-high-quality-carbon-wheels

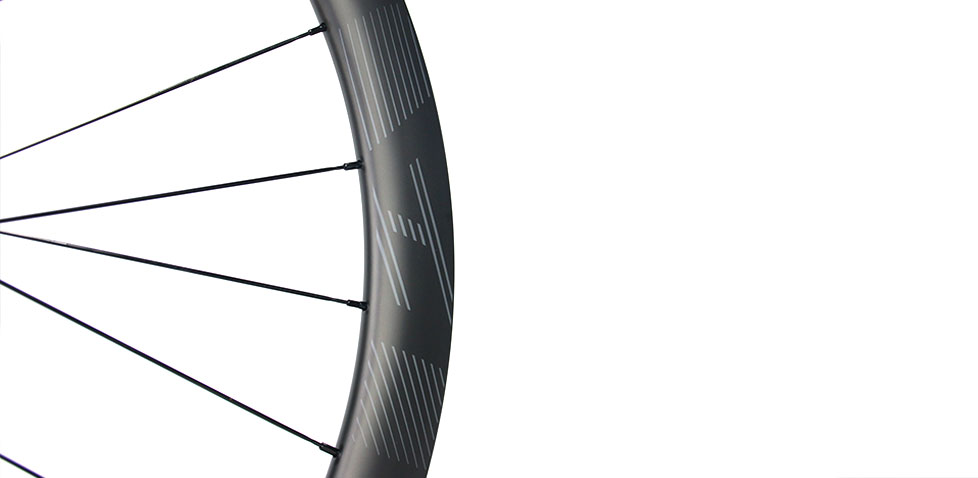

aerodynamic-fast-rolling-resistance-carbon-road-wheels

Build Your Falcon WHEELSET R45 DISC

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

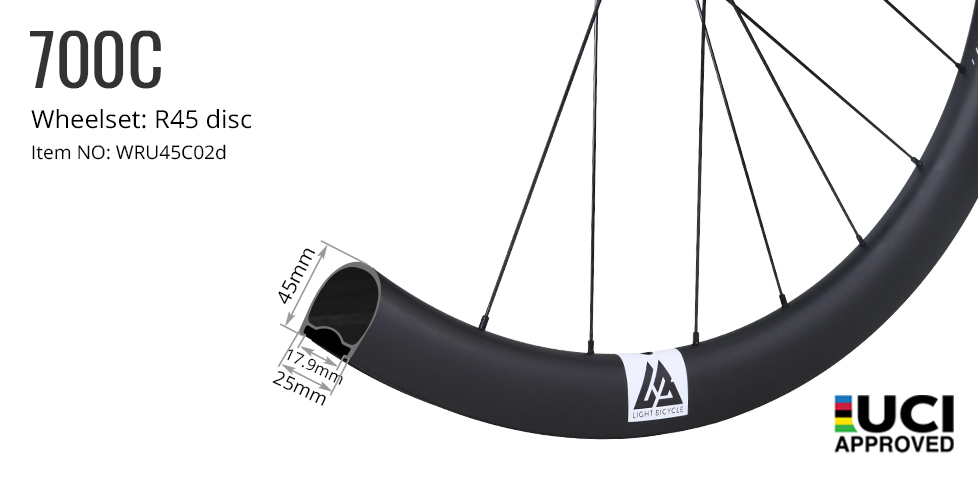

Wheelset R45 disc

Global Shop

US Shop

CA Shop

EU Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
LB Pace-Hub	275/285g	36/48	Low	Better	Good	Light, reliable, economic	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing/Ceramic	Two	China	Light Bicycle
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Chris King R45D

Carbon-Ti X-Hub

Erase Road Centerlock Hubs

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano Road 11S

Sram XDR

Shimano Micro Spline Road

Shimano HG11/12

Campagnolo N3W

Shimano Microspline (Road/Gravel)

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

54T

56T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4.0-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Thrust-4 Carbon - The Thrust-4 Carbon spokes are designed to boost high tensile strength. The 4mm all-road profile ensures great crosswind stability.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

Pillar Aero X-TRA 1420

Sapim CX Ray

Sapim CX Sprint-Rear drive side/ CX Ray-Other sides

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Brass Black

Brass Oil slick

Aluminium Red

Aluminium Black

Bead type This is a required option.

Hook

Brake System This is a required option.

Disc

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Center Channel Hole & Nipple Hole This is a required option.

Center Channel Hole options:
1) With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
2) No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" or referred as 'UST style'. Currently, rims with 'No Access Holes' do not work with our carbon spokes.

Nipple Hole options:
1) External Nipple Hole is the commentional way drilled for external nipples and is the default standard for Light Bicycle rims.
2) Internal Nipple Hole is drilled for internal nipples('upside down/ hidden style'). This is optional for some Light Bicycle rims.

With Access Holes and External Nipple Holes

No Access Holes and External Nipple Holes

With Access Holes and Internal Nipple Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
LB Pace-Hub	275/285g	36/48	Low	Better	Good	Light, reliable, economic	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing/Ceramic	Two	China	Light Bicycle
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Chris King R45D

Industry Nine Solix

Onyx Vesper

Erase Road Centerlock Hubs

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

15 / 100mm

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

QR / 135mm

Freehub Body This is a required option.

Shimano Road 11S

Shimano Road 11S Alloy

Sram XDR Alloy

Campy 11S Alloy

Sram XDR

Shimano Micro Spline Road

Shimano HG11/12

Campagnolo N3W

Shimano Microspline (Road/Gravel)

Spoke Head This is a required option.

straight pull

J-bend

Brake System This is a required option.

6-bolt

Center lock

Hub Color This is a required option.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Gold

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Matte Black

Orange

Pink

Powdercoat-Black Aura

Powdercoat-Blue Baby

Powdercoat-Blue Candy

Powdercoat-Green Antifreeze

Powdercoat-Green Fluorescent

Powdercoat-Green Kawasaki

Powdercoat-Pink Fluorescent

Powdercoat-Purple Candy

Red

Silver

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

24H

28H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

36T

45T

54T

605POE

EXP 36

EXP 54

Sprag Clutch

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	Thrust-4 Carbon	Aero	2.2-1.1/4-2.2	2.8g (SP, 260mm)	N/A	Light Aero/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Alpina Extralite

Berd PolyLight in Black

Berd PolyLight in White

Sapim D-Light

Sapim D-light

Sapim Race

Sapim CX Ray in Black

Sapim CX Ray in Silver

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	North America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China

Brass Black

Aluminium Black

Aluminium Silver

Aluminium Purple

Aluminium Orange

Aluminium Lime

Aluminium Green

Aluminium Gold

Aluminium Blue

Aluminium Red

Bead type This is a required option.

Hook

Brake System This is a required option.

Disc

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

20H

24H

Finish This is a required option.

Matte

Weave This is a required option.

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Non-removable glossy black waterslide graphics

Valve Stem This is a required option.

Add Valve Stem USD +7 each

None

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +8 each

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Shimano-type Brake Pads USD +15

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1399.28g+/-3%

Subtotal: USD 866+

Piece Weight: 0.00g+/-3%

Subtotal: USD 0+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model R45 disc
UCI-Approved >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 17.9mm/25mm
Depth 45mm
ERD 550mm (not including nipple head dimension)
Rim Weight 445+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 130kg/ 287lbs
Spoke Hole Angle ±6°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure (with 25C) 120psi/ 8.27bar
Recommended Tire Width 21C-38C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: R45 disc
UCI-Approved >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road/CX
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 17.9mm/25mm
Depth: 45mm
ERD: 550mm (not including nipple head dimension)
Rim Weight: 445+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Spoke Hole Angle: ±6°
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure (with 25C): 120psi/ 8.27bar
Recommended Tire Width: 21C-38C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D, Carbon-Ti X-Hub, Erase Road Centerlock Hubs, Industry Nine Solix, Onyx Vesper
Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm
Rear Axle Size: 12 / 142mm, QR / 135mm
Driver Body: Shimano Road 11S, Sram XDR, Shimano Micro Spline Road, Shimano HG11/12, Campagnolo N3W, Shimano Microspline (Road/Gravel), Shimano Road 11S Alloy, Sram XDR Alloy, Campy 11S Alloy
Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Alpina Extralite, Berd PolyLight in Black, Berd PolyLight in White, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Black, Sapim CX Ray in Silver
Nipples: Brass Black, Brass Oil slick, Aluminium Red, Aluminium Black, Aluminium Silver, Aluminium Purple, Aluminium Orange, Aluminium Lime, Aluminium Green, Aluminium Gold, Aluminium Blue

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

With a 45mm depth, 25mm external width, and 17.9mm internal width, the R45 disc wheelset combines high-end carbon material with optimized aerodynamic features.

The R45 disc wheelset has been popular for road riding and racing. It's light enough to accelerate and climb, while its aerodynamics make you feel like you have an added gear at race speeds.

Our technicians have conducted in-depth tests on the road and in house to refine the rim in terms of rolling and longevity. Its precision-crafted shape means higher speeds with less effort, making you faster everywhere.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Rim Model: R45 disc
UCI-Approved >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road/CX

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 17.9mm/25mm

Depth: 45mm

ERD: 550mm (not including nipple head dimension)

Rim Weight: 445+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 130kg/ 287lbs

Spoke Hole Angle: ±6°

Spoke Tension: 120~130kgf front disc side and rear drive side

Max Tire Pressure (with 25C): 120psi/ 8.27bar

Recommended Tire Width: 21C-38C

Read more for actual road tire width

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D, Carbon-Ti X-Hub, Erase Road Centerlock Hubs, Industry Nine Solix, Onyx Vesper

Front Axle Size: 12 / 100mm, 15 / 100mm, QR / 100mm

Rear Axle Size: 12 / 142mm, QR / 135mm

Driver Body: Shimano Road 11S, Sram XDR, Shimano Micro Spline Road, Shimano HG11/12, Campagnolo N3W, Shimano Microspline (Road/Gravel), Shimano Road 11S Alloy, Sram XDR Alloy, Campy 11S Alloy

Hole: 24H, 28H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides, Alpina Extralite, Berd PolyLight in Black, Berd PolyLight in White, Sapim D-Light, Sapim D-light, Sapim Race, Sapim CX Ray in Black, Sapim CX Ray in Silver

Nipples: Brass Black, Brass Oil slick, Aluminium Red, Aluminium Black, Aluminium Silver, Aluminium Purple, Aluminium Orange, Aluminium Lime, Aluminium Green, Aluminium Gold, Aluminium Blue
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

elves-vanyar-on-light-bicycle-45mm-carbon-wheels

Yoshiaki : R45 Wheels

Japan

light-bicycle-r45-disc-r65-disc-on-rose-x-lite-disc-brake

Flo : Rear: FALCON rim R65 disc Road Front: FALCON rim R45 disc Road Hubs: DT Swiss 240 EXP Staightpull DT Aerolite Spokes and hidden nipples perfect!

Germany

ceepo-stinger-disc-brake-road-bike-with-Light-Bicycle-R45-12k-weave-lightweight-carbon-wheelset

Dieter : Hi Holger, thanks for sharing your experiences. Could you please tell me, what hubs you choose? Thanks, Dieter

Germany

light-bicycle-r45-carbon-fiber-wheels-on-canyon-ultimate-cf-sl-road-bike

Lukas : I love those wheels. I have them since February, been riding them for about 4000km, without any issues. The spoke tension and centricity is still super, I am quite a heavy rider (96 kg at 197cm), I had other wheelsets from other more known manufacturers that had to be serviced after a short time. All in all a very high-quality wheelset for a super affordable price.

Germany

700c-carbon-fiber-lb-45mm-deep-rims-shimano-ultegra-crankset-carbonda-road-bike

Philippe : First ride. Feels great! Carbonda CFR 505 frame, Tubeless setup was easy. No need tape, floor pump, perfect fit with 25mm tires. Happy New Wheels!

China

carbon-fiber-700C-rims-specialized-road-bicycle

Gauthier : Hi Grace, I received the pair of wheels on December 24th. They arrived in perfect condition, thank you for your seriousness and for the quality of the material!

France

Kamaro : Front rims are RRU45C02 and the rear are RRU55C02 with Alfine hub. The tires are Schwalbe Pro One 622x28. No problems with this combination and tubeless use. Many thanks, great wheels.

Czech Republic

Leon : Hi Could I get a quote on those above specs but a Shimano 11 speed hub please Thank you

USA

View More Reviews >>

Rider Story

We would love to hear your story and earn a $50 reward. Tell us your personal riding story that highlights the joys and challenges of riding.

Share your rider story now >>

COMMENTS

Adam 2021/10/11

Hi, Just wondering if you’re able to get purple hubs, either Chris king or bitex would be fine. I see that option isn’t listed in your builds. Thanks

LightBicycle 2021/10/11

Hi Adam, Currently, we do not have purple road disc hubs in stock. is it pink I9 Torch hub working for you? For purple hubs, they are boost size in stock now. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Matthew 2020/11/29

What is the weight limit for the FALCON WHEELSET R45 DISC Road/CX?

LightBicycle 2020/11/30

Hi Matthew, The weight limit on R45 road disc wheelset is 130KG on flat ground. Do you ride aggressively? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ronny 2020/05/18

Can I order your disc wheelset as a QR configuration?

LightBicycle 2020/05/18

Hi Ronny, Of course, we can do QR (Quick-Release) for the disc wheels 700C for you. Normally, it is front 100mm QR/ rear 135mm*QR for road disc. Is this what you are looking for? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bert 2020/02/21

Can you match the spec of enve 4.5 on your weels?

LightBicycle 2020/02/21

Hi Bert, Yes, we do have rims that close to the SES 4.5. Do you like 28mm wide/32mm wide wheelset? You can choose front 32mm wide WR45/ 28mm wide AR56 for your road disc wheels? https://www.lightbicycle.com/700C-32mm-wide-45mm-deep-carbon-road-disc-rim-clincher-New-Gen-Aero-Shape-tubeless-compatible.html https://www.lightbicycle.com/Road-bicycle-disc-rims-30mm-wide-56mm-deep-aero-clincher.html Thanks, Lightbicycle Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

No.	Test Item	Test Standard	Compliance Rate	Measured Data
1	Drops Stiffness Vertical Test (Upwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.01/9.81
2	Drops Stiffness Vertical Test (Downwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.12/9.94
3	Hoods Stiffness Vertical Test (Downwards)	30kgf static pressure deformation ≤ ( 6 ) MM	100%	5.26/5.26
4	Handlebar In-Phase Loading Fatigue Test	Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
5	Handlebar In-Phase Loading Fatigue Test	Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
6	Handlebar Out-Phase Loading Fatigue	Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
7	Handlebar Out-Phase Loading Fatigue	Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
8	Impact Test	55J	100%	55J
9	Product Weight	( 250 +/-15 ) g	100%	259g

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Specialized	Tarmac SL8	Colnago	V3
	Tarmac SL7		V4R/C68
	ALLEZ SPRINT		V3R/C64
	Aethos S-Works 2026		V5RS
Trek	MADONE SLR GEN8	Cannondale	SUPERSIX EVO G4
	MADONE SLR GEN7		SUPERSIX EVO G3
	EMONDA SLR		SYSTEMSIX
	MADONE SLR		LAB71
Quick Pro	ER:ONE		Supersix Evo 1 2023
Scott	NEW ADDICT RC	Factor	OSTRO VAM
	ADDICT		02 VAM
	NEW FOIL RC	Rose	Rose Xlite 6
	FOIL		Backroad 2019
Cervelo	R5	Pinarello	Dogma F12
	Caledonia
Please provide bike photo if you have any of the bikes listed below.
BMC	TMR 01
	SLR 01
	Teammachine SLRO1
Bianchi	Specialissima RC
Deda	OCR/BOTECHIA OCR
FOCUS	IZALCOMAX
Merida	REACTO/SCULTURA
Orbea	ORCA OMX/OMR
Ribble	CGR SL
Ridley	HELIUM SLX
	NOAH
TIME	ADH
Wilier	CENTO 10
	Triestina
	ZERO
	FLANTEE SLR/CENTO 10 SL
Can't find your bike model? Please let us know at sales@lightbicycle.com.

Use	Lightweight Road Riding
Width	340/380mm, 360/400mm, 375/415mm, 395/435mm
Stem Length	90mm, 100mm, 110mm, 120mm, 130mm
Material	Toray T700 & T800 Carbon Fiber
Finish	Matte/Glossy/Paintless/Custom Paint
Weave	UD/Marble
Weight	Starting from 250g
Reach	70mm
Drop	123mm
Stack	36.3mm
Steer Size	1-1/8″ (28.6mm), OD2 not Compatible
Flare	9°
Sweep	4°
Stem Angle	-10°
Impact Strength	Surpasses 55J Impact Test
Rider Weight Limit	120 kgs
Cable Routing	Internal & External
Computer Mount	Default Alloy Aluminum or 3D-Printed Titanium
Spacer	Universal 52mm/56mm or 3D-Printed Custom
Bolts	Titanium
Warranty	3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program.

Build Your Falcon WHEELSET R45 DISC

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery

Rider Story
